Table of Contents

1 Overview

1.1 Bill of Materials (BOM)

Manufacturer Part Number Manufacturer Description Quantity Notes
STM32L432KC STMicroelectronics 32-bit MCU 1
CP2102N-A02-GQFN24R Silicon Labs USB 2.0 to UART Interface 1
BNO086 CEVA Technologies, Inc. 9-DOF IMU 1
BMP390 Bosch Sensortec Barometric Pressure Sensor 1
TJA1057BTK NXP USA Inc. CAN Bus Transceiver 1
SAM-M10Q u-blox RF Receiver Galileo, GLONASS, GPS 1
WS2812B (Various) PWM Addressable RGB LED 1

2 Board Specifications

2.1 Connectors

Connectors fixed by hardware (PCB traces or the connector itself).

Connector Ref Description
Tag-Connect TC2050 J1 SWD programming/debug connector
BOOT0 jumper J2 Open for run flash memory (pull-down on open)
USB-C J3 USB-to-serial programming/debug, secondary 5 V source
CAN1 J4 Pin 1: CAN1 High, Pin 2: CAN1 Low

2.2 Switches & Jumpers

User controllable hardware and/or firmware driven inputs.

Switch/Jumper Ref Description
Sensor Hub MCU reset button SW1 Generic 6 mm TH button, push to reset
5 V bypass JP1 Closed = Short protection (schottky) diode pads, open = enforce schottky diode
Level shifter V IO JP2 1 + 2 closed = 5 V, 2 + 3 closed = 3.3 V
BOOT0 DTR bridge JP3 Closed = CP2102N DTR BOOT0 control, open = Manual BOOT0
BNO086 clock select JP4 Open = crystal, closed = external/internal
BMP390 I2C address JP5 Open = 0x76, closed = 0x77
Interface SPI CS pin select JP6 1 + 2 closed = CS1 (D10), 2 + 3 closed = CS2 (D8)
Interface 3.3 V output JP7 Open = no output, closed = 3.3 V LDO output bridged
Interface NRESET output JP8 Open = no output, closed = STM32 NRST bridged

2.3 Batteries

Onboard battery supplies.

Battery Ref Description
CR1220 battery cell BT1 u-blox GPS RTC and ephemeris RAM (reverse polarity protected)

2.4 LEDs

LEDs used to show board status and/or user controllable.

Test Point Mark Description
UART TX Silkscreen: “TX” Green LED: blinking = transmitting data
UART RX Silkscreen: “RX” Amber LED: blinking = receiving data
5 V Supply Silkscreen: Lighting bolt Amber LED: on = 5V pin, off = (only) USB-C
WS2812B LED None RGB addressable LED

2.5 Test Pads

Test Point Ref Description
GPS NRST TP1 u-blox GPS NRST net
GPS RX TP2 u-blox GPS RX net
GPS TX TP3 u-blox GPS TX net
WS2812B LED PWM TP4 DOUT from onboard WS2812B

2.6 Power Supply

The board can be powered by either of the following methods:

  1. 5V pin via the Uno-style interface.
  2. Onboard USB-C connector.

2.6.1 5 V Power OR Switch

The 5 V supply is managed by an OR power switch (TPS2116DRL).

The 5V pin from the Uno-style interface takes priority. As long as ~1 V or more is present on this pin, it will be used as the power source. If this condition is not met, the board automatically switches to the USB-C 5 V supply.

2.6.2 Optional 5 V Pin Supply Protection

The 5V pin supply can be configured with optional protection diodes (default not included), see the following instructions:

  • The 5 V bypass jumper must be cut to stop shorting of the schottky diode pads, enforcing the schottky diode.
  • Schottky diode required (designator D1, footprint SMA).
    • Intended to provide reverse polarity protection.
  • TVS diode required (designator D2, footprint SMB).
    • Intended to provide short high voltage clamping.

2.6.3 3.3 V LDO Supply

The 3.3 V supply is managed onboard by a dedicated 5 V to 3.3 V LDO, independent of any connected board.

If the user wishes to use the Momentum dev board’s 3.3 V supply for low current applications, the Interface 3.3 V output jumper can be bridged, allowing for 3.3 V to be supplied from the onboard LDO. This should only be done with caution, as a connected main controller which would supply its own 3.3 V on the same Uno-style interface 3.3V output pin.

2.7 SPI Interface

All SPI pins interfacing with connected boards are level-shifted. By default, the external SPI pins are level shifted to 5 V. However, it can also be shifted to 3.3 V via the Level shifter V IO 3-pad jumper.

See section 2.8 Level Shifter for details.

The SPI CS pin can be swapped between the Uno-style interface pins D10 (default) and D8 via the Interface SPI CS pin select jumper. This is intended to help resolve any pin conflicts.

2.8 Level Shifter

Note the level shifter interfaces with the SPI singals (CIPO, COPI, SCK and CS) as well as the WS2812B PWM data line. Adjusting the Level shifter V IO 3-pad jumper toggles the voltage shifting between 3.3 V and 5 V.

If you opt for 3.3 V shifting, be aware that the WS2812B LED may exhibit instability. The WS2812B datasheet states:

  1. DIN high signal >= 0.7 * VDD
  2. DIN low <= 0.3 * VDD

Thus, a 3.3 V signal may not be able to meet the DIN high requirement, reducing functionality of the WS2812B in this level shifting configuration.

2.9 STM32L432KC Flashing

The official STM32L432KC Momentum firmware is managed here: momentum.

The STM32L432KC can be flashed in 3 different ways:

  1. SWD via Tag-Connect TC2050 interface.
  2. Hands-free UART bootloader via USB-C (CP2102N USB-to-UART).
  3. Manual BOOT0 jumper with UART bootloader via USB-C (CP2102N USB-to-UART).

For use of the USB-C UART bootloader interface, the custom flashing software pyblasher is highly recommended.

All three options are available by default, however it is suggested to use options 1 and 2 based on user preference.

Option 3 is applicable for users who wish to use the USB-C for as both a serial and UART bootloader interface. In this method, the through-hole BOOT0 jumper must be manually bridged to assert BOOT0.

See section 2.10 USB-C Serial Interface for details.

2.10 USB-C Serial Interface

The USB-C interface connected via the CP2102N USB-to-UART is primarily designed as a UART bootloader flashing interface, however can also be used as a serial interface for simple communication to a desktop computer.

Due to the design for hands-free flashing, the STM32’s BOOT0 will be controlled by the CP2102N’s DTR pin. Thus, when a COM port is established BOOT0 will be raised high, entering the bootloader. To prevent this behaviour, the BOOT0 DTR bridge jumper can be cut, allowing for USB-C serial communication.

If the user wishes to still use the UART bootloader with this modification, the BOOT0 must be asserted manually to enter the bootloader via the through-hole BOOT0 jumper.

3 Schematics

Download PDF: momentum_pcb-schematic.pdf.

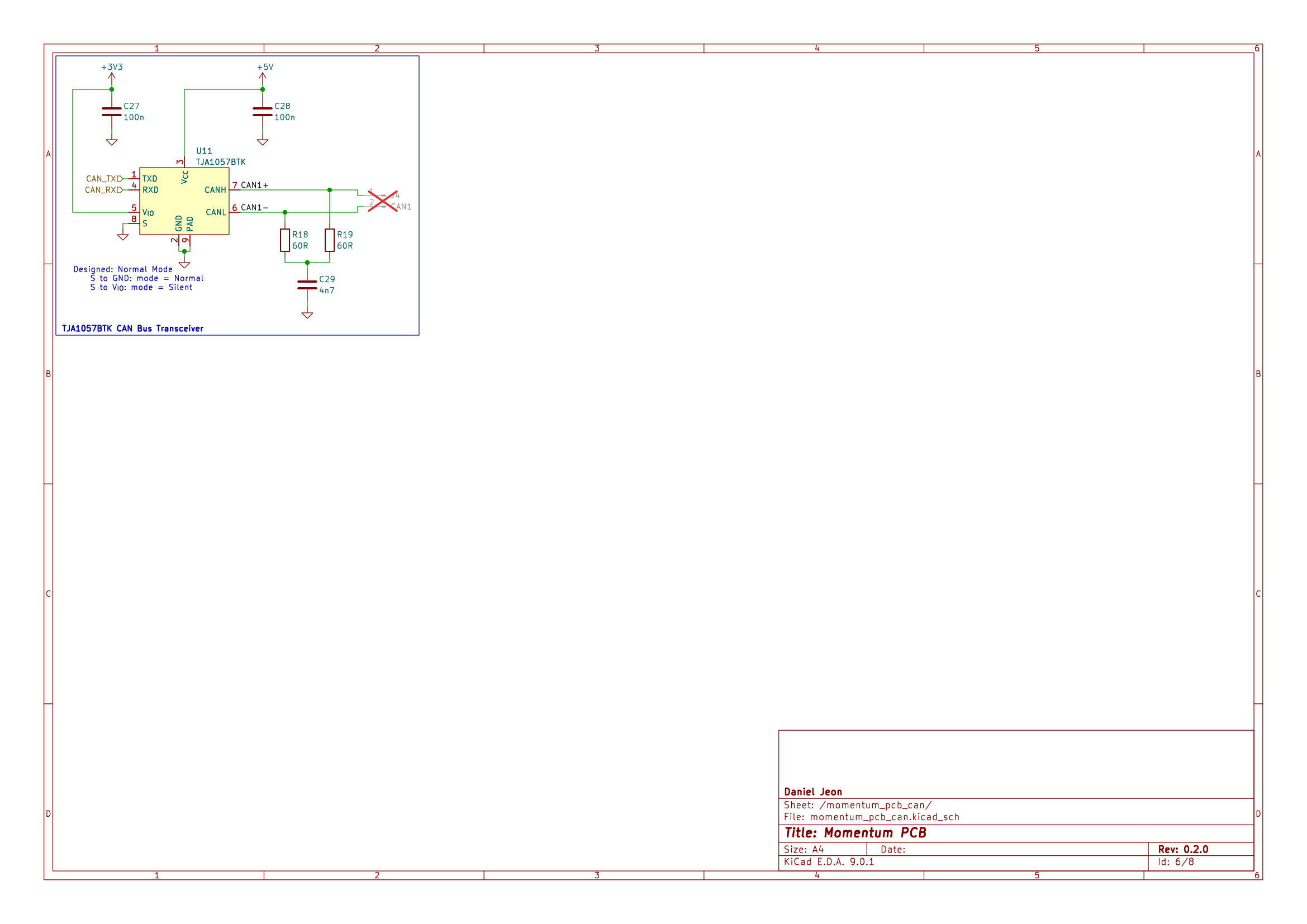

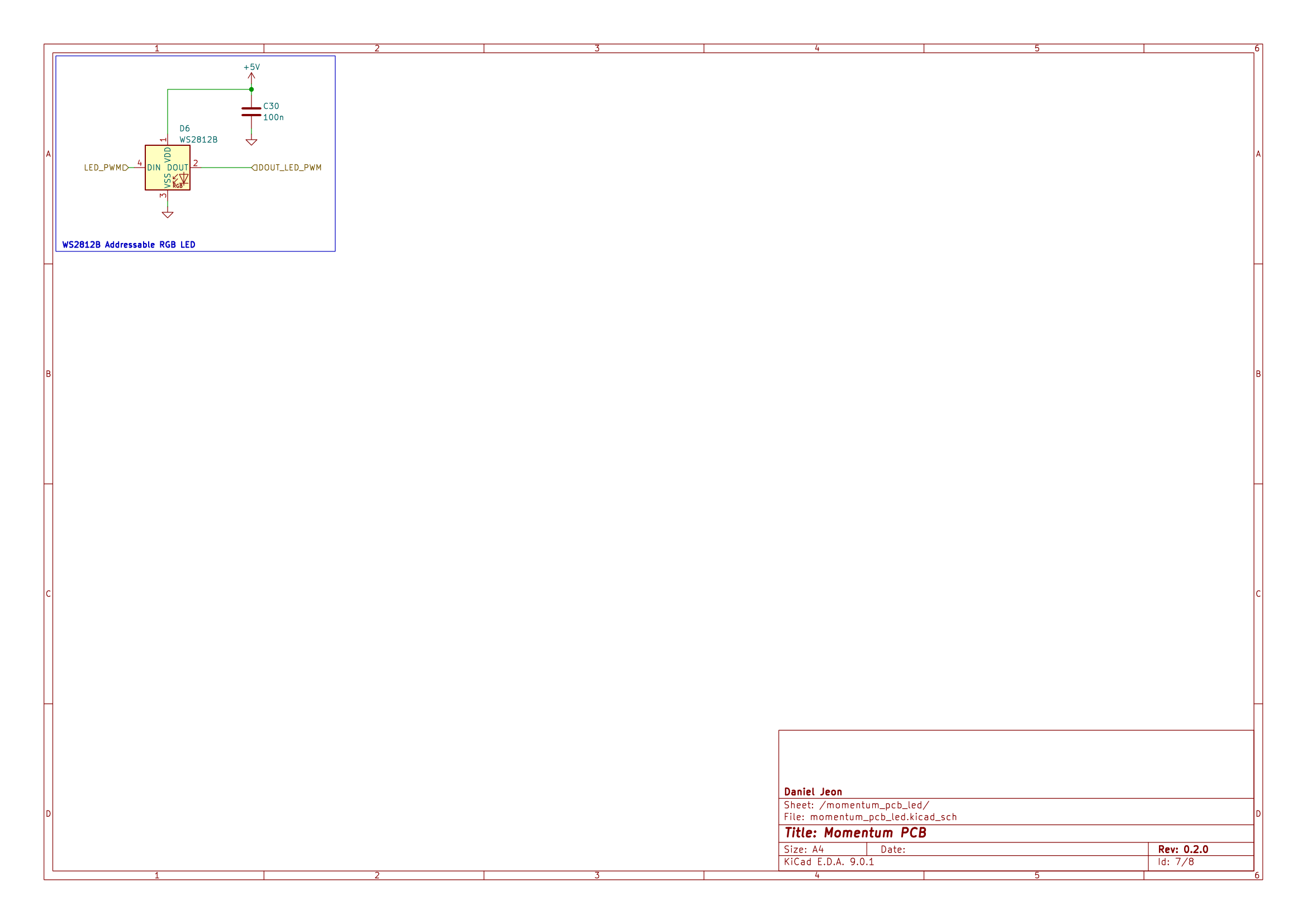

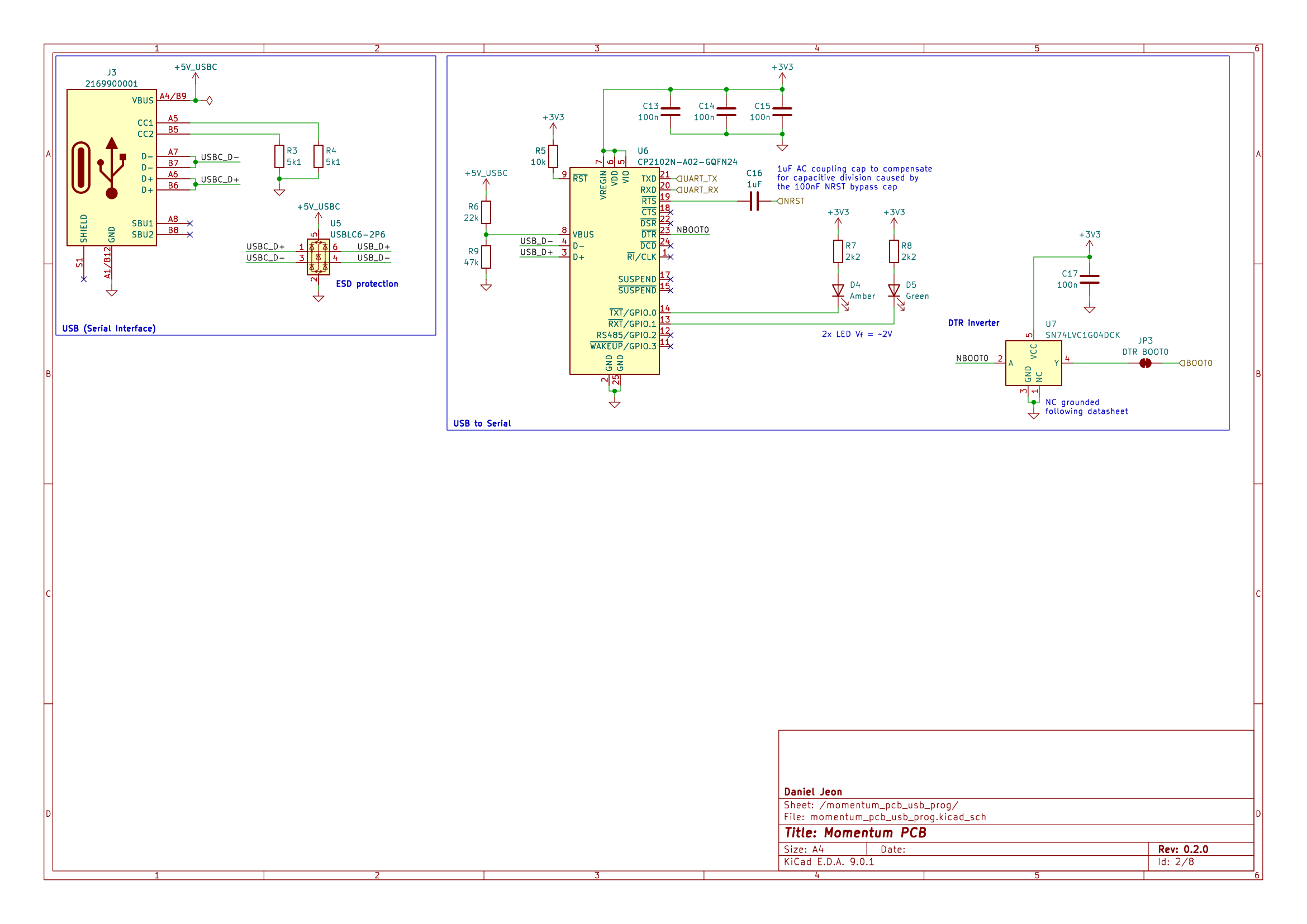

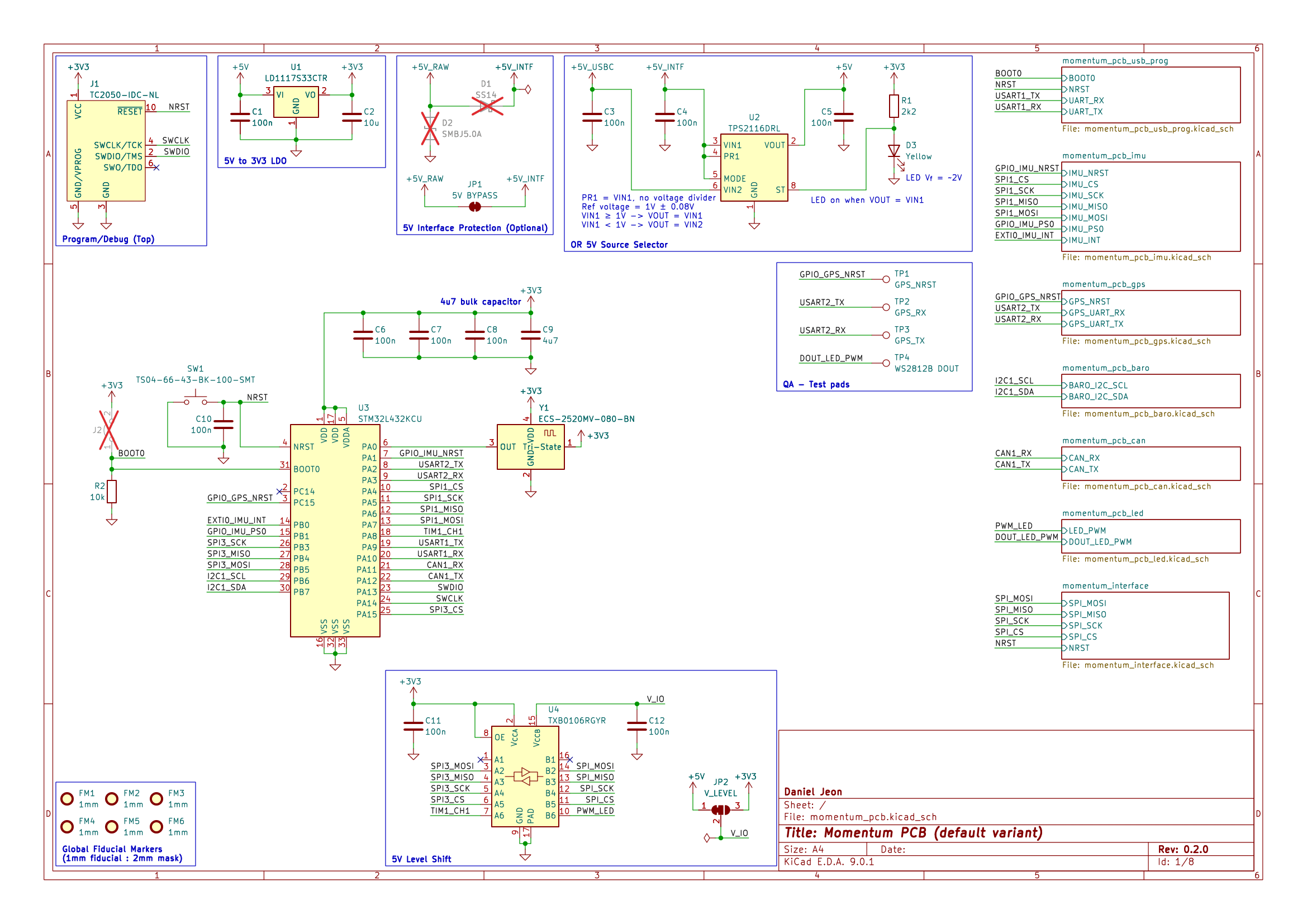

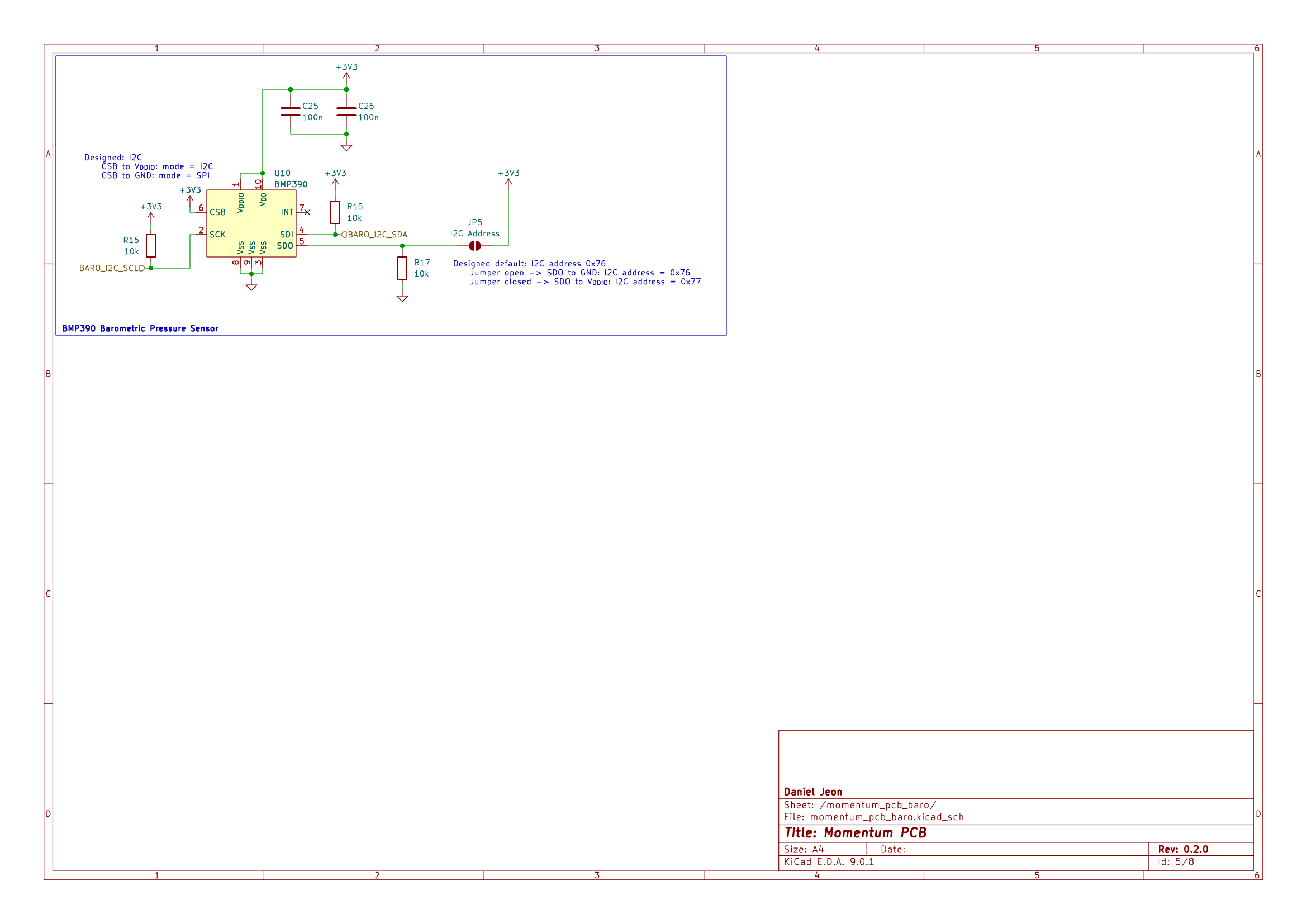

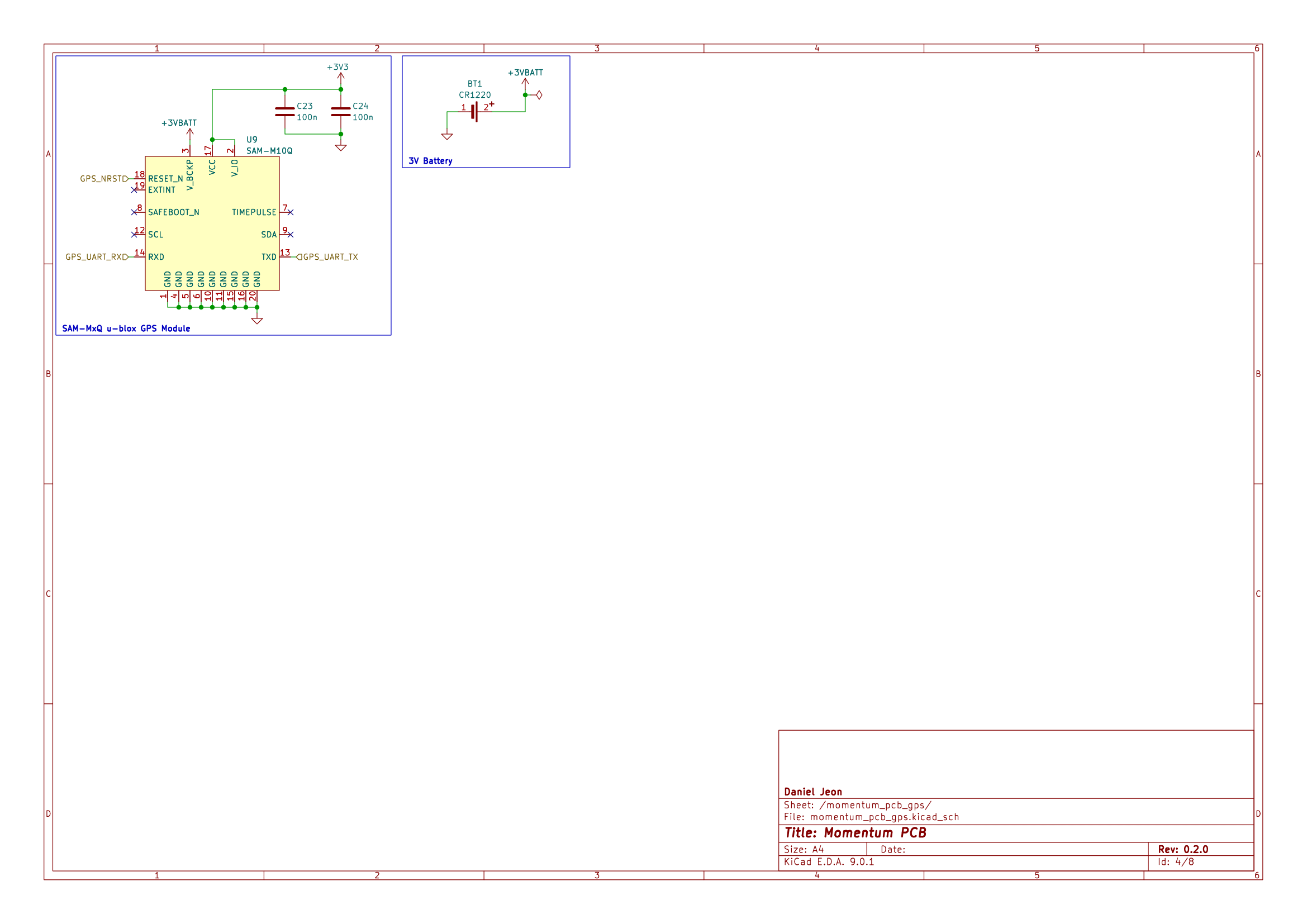

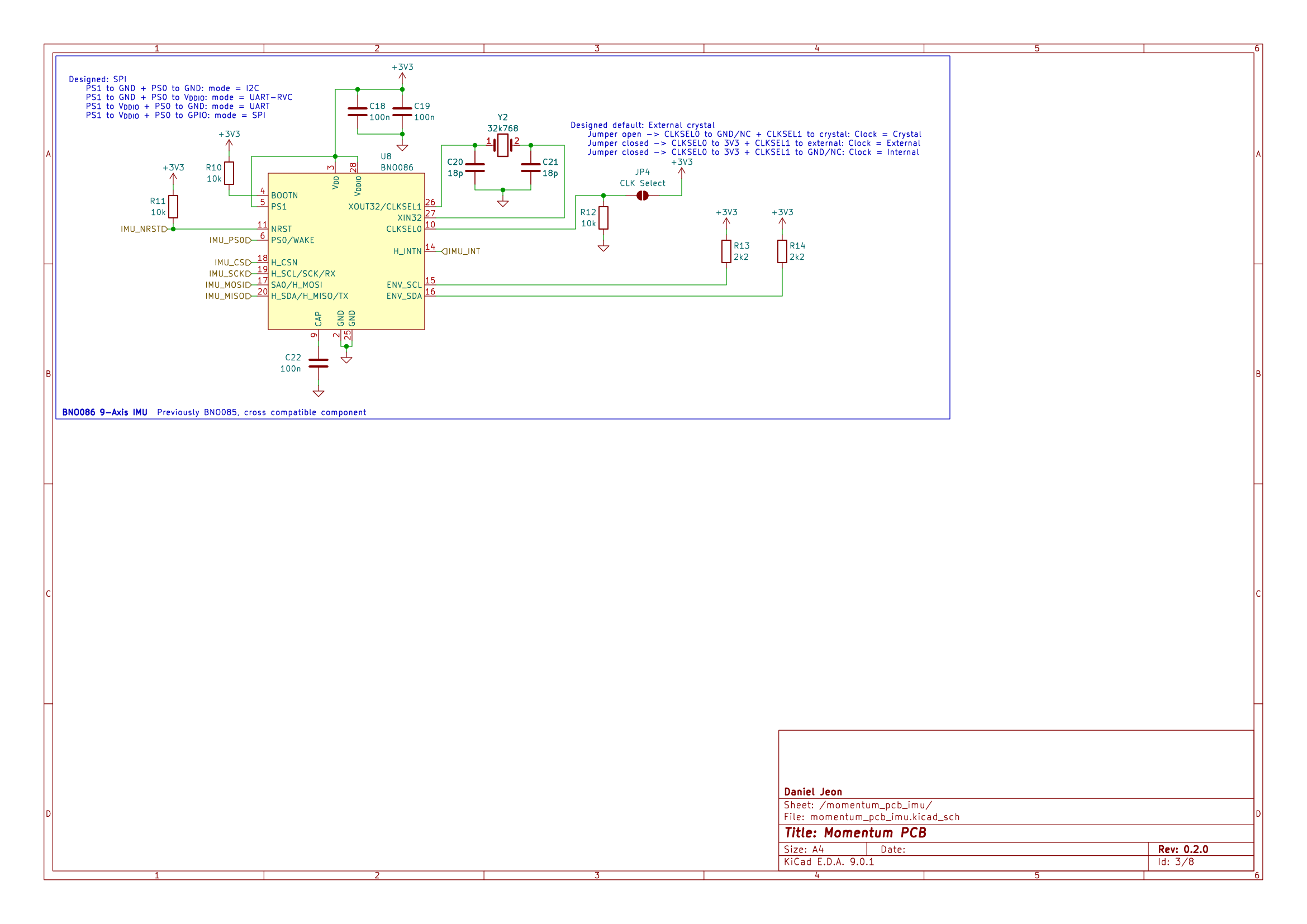

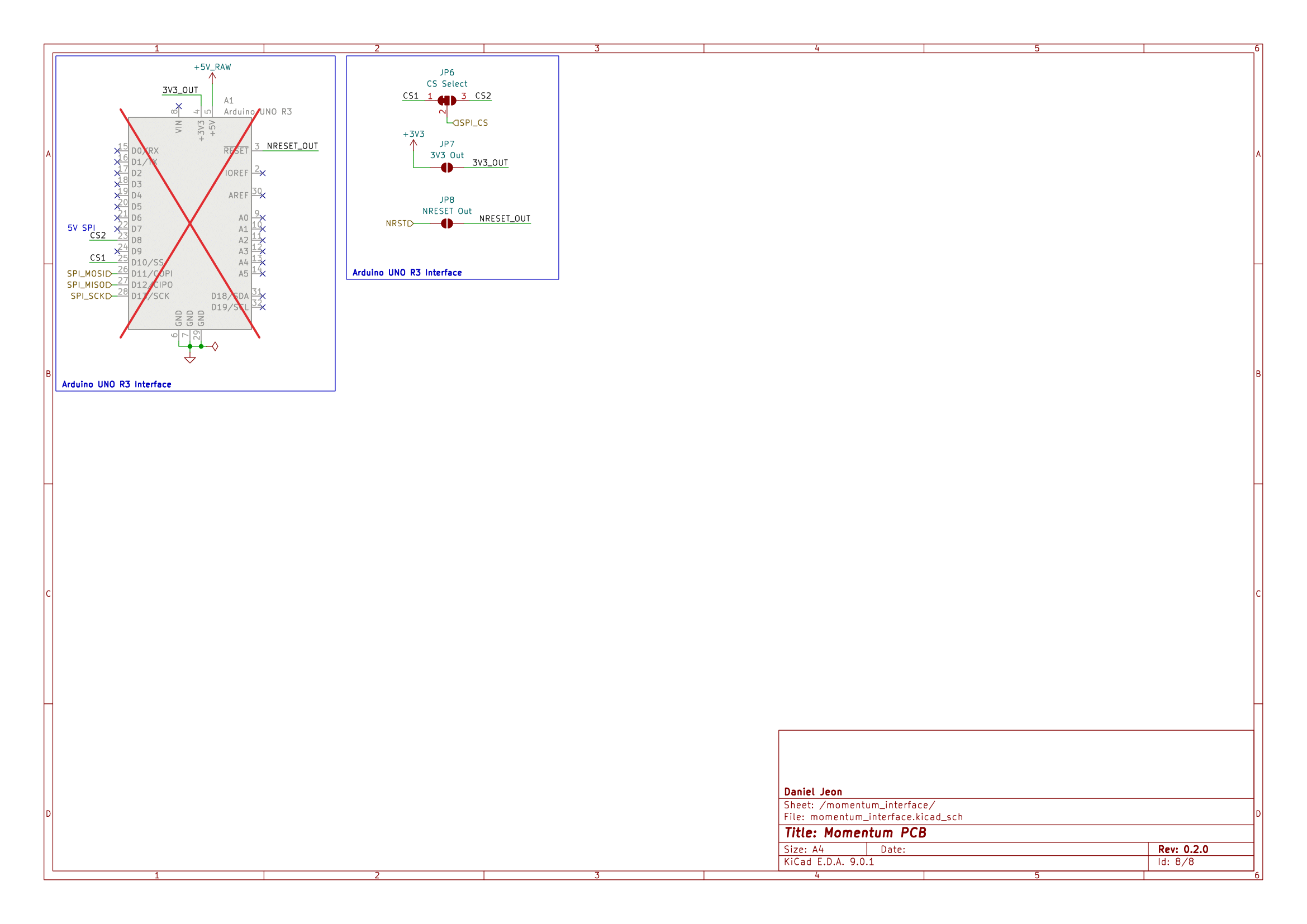

momentum_pcb-schematic-1.png momentum_pcb-schematic-2.png momentum_pcb-schematic-3.png momentum_pcb-schematic-4.png momentum_pcb-schematic-5.png momentum_pcb-schematic-6.png momentum_pcb-schematic-7.png momentum_pcb-schematic-8.png

4 CAD 3D Model

Download STEP: momentum_pcb-3D.step.
